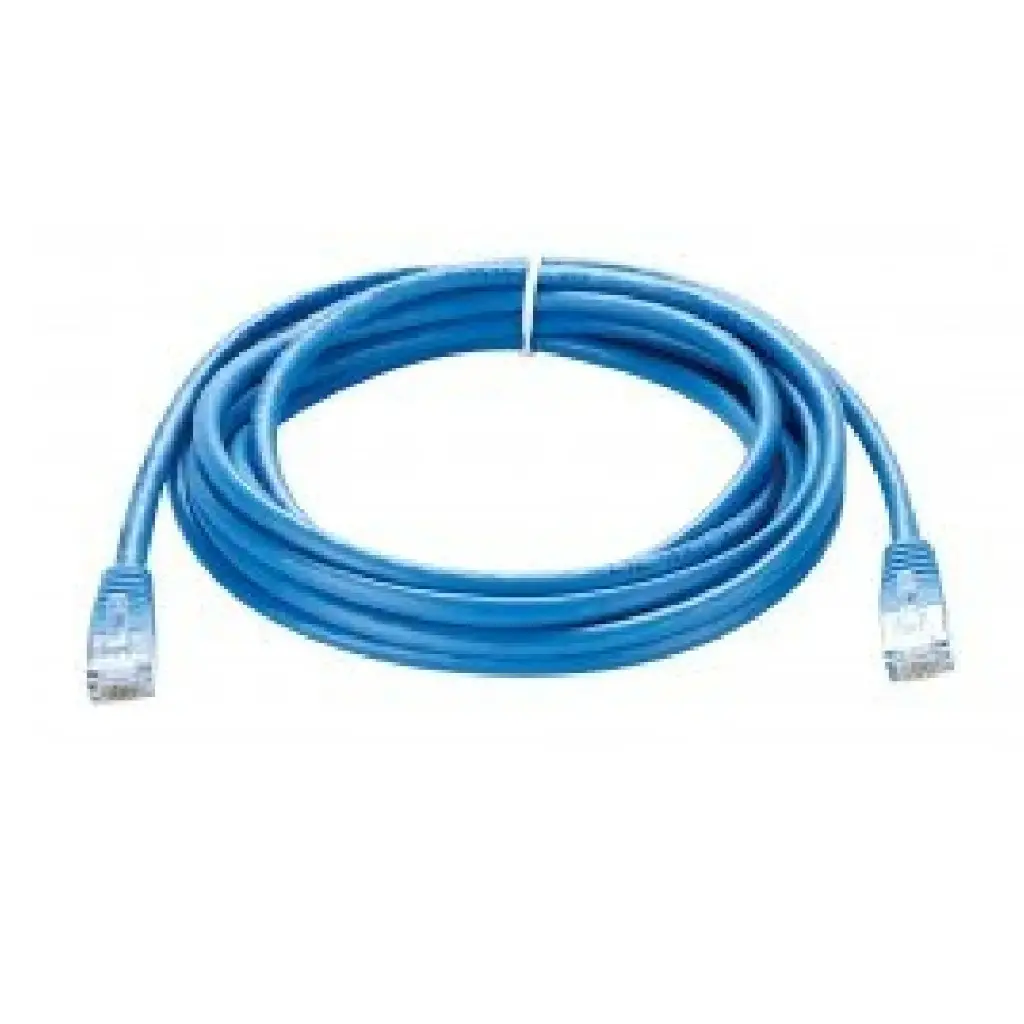

D-Link 3M CAT6 Patch Cord 3M, Blue (NCB-C6UBLUR1-3) BLUE
Description
NCB-C6UBLUR1-3
Description
Cat6 UTP 24 AWG Round Patch Cord, 3M, Blue
Type
UTP
Flat/Round
Round
AWG
24
Category
Cat6
Color
Blue
Length
3m
Cable
"Conductor: 24 AWG(7/0.203 ±0.007mm), Multi-cores ( 7 cores at the least) Conductor Metal: Bare Copper
Insulation Material: HD-PE
OD: 1.10 ±0.05mm
Average Thickness: 0.25 mm
Outside-Tape Metal: MYLAR
Overlap Rate: 25%
Drain Wire: 26 AWG(7/0.160 ±0.007mm)
Jacket hardness: 45P (90A ± 2A, Shore)
Material: PVC UL94V-0 OD: 7.0mm ±0.2
Average Thickness: 0.60 mm
Color: Cool Gray 5C
Length type: 3000mm ± 30mm
Heat-resistant: 75o
C minimum (Temperature limited)
Flame property: The purpose of the vertical flame test is to screen out flammable wires.
That follow to VW-1 (UL); FT-1 (CSA), either. "
Technical details
"Mutual Capacitance: 5.6nF/100m nominal
Characteristic Impedance: 100Ω±15%,1-600MHz
Nominal Velocity of Propagation: 69%
Operating Temperature: -20℃-60℃(-4℉-140℉)
Storage Temperature: -20℃-80℃(-4℉-176℉) "
Certifications
"UL 444 (for Copper conductor)
UL 758/ Style 2835 (for Copper, CCA, CCAM & CCS conductors)
UL 1581 (Test standard)
TIA/EIA-568B.2 (Test standard).
FCC Part 68.500 or IEC 60603-7-4 (for Modular connector)
D-Link Product Hazardous Substance Management. "
Application
"10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T, 10GBASE-T (IEEE802.3)
100VG-AnyLAN (IEEE802.12) 550 MHz Broadband Video
Voice, T1, ISDN
155/ 622 Mbps ATM
Power over Ethernet (POE) "
