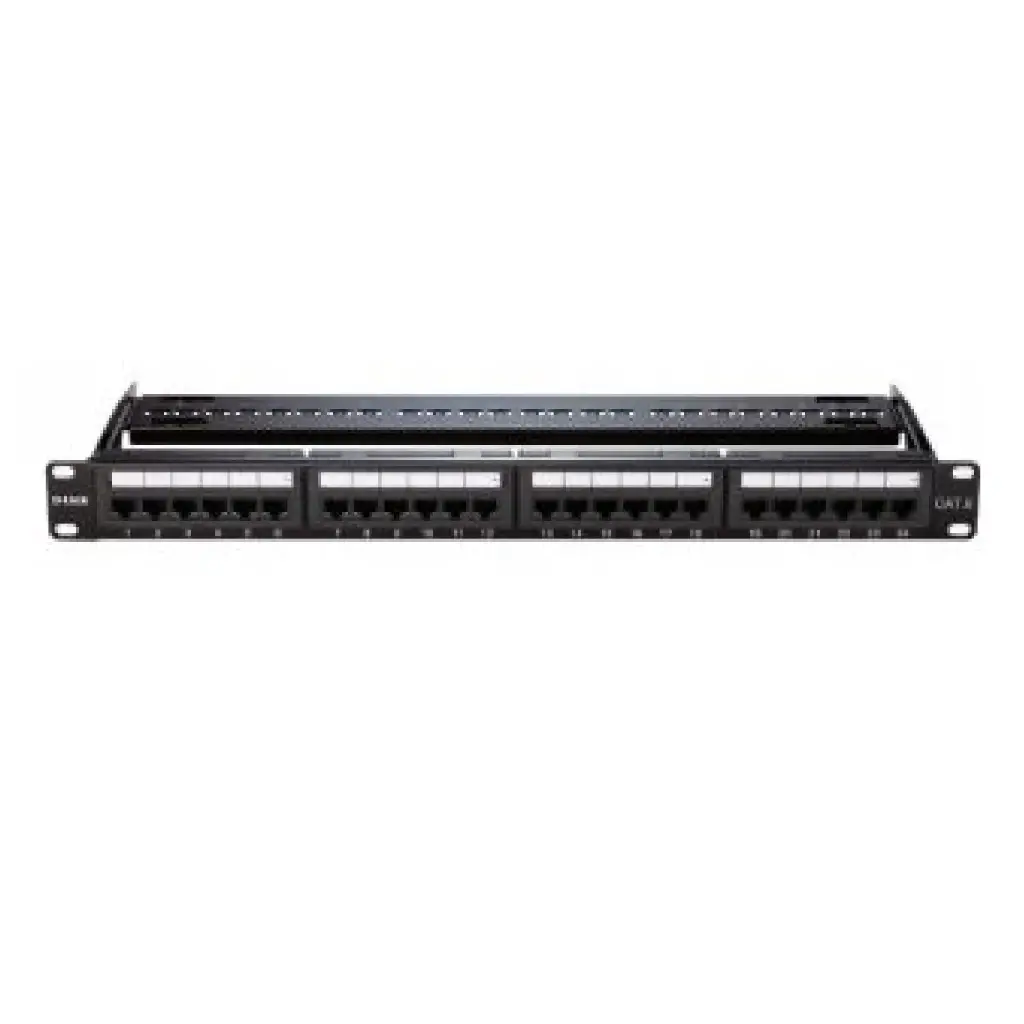

D-LINK NPP-C61BLK241 Cat6 Fully Loaded 24ports Patch Panel
Description
Cat6 Fully Loaded 24 port Unshielded Patch Panel
Features
Hand screw, easy to open coverEight port RJ45 modules appliedJack shutter to keep dust awayFriendly installation, right angle betweenIDCs and RJ45 keystone jacksID stripes for identifying port allocationsIDC compatible with 110&Krone toolMounts in standard 19” racksRoHS/UL certified
Performance
T568A & T568B wiring scheme on PCBInsertion force: 30N max. (IEC 60603-7-5)Retention strength: 7.7 kg between jack and plugOperating temperature: -10C to 60C( ISO/IEC 11801, ANSI/TIA/EIA 568B.2)Life ( mating cycles):a. Jack: 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-5)b. IDC: suitable for 22-26 AWG stranded and solid wire,compatible with both 110& Krone punch down toolsThe Cat6 transmission performance is in compliancewith the ANSI/TIA/EIA 568B.2 -1 standard
This content will be shared across all product pages.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | D-LINK |
| Tags | |
|---|---|
| Tags | |
